Traefik setup

Our Traefik setup is largely based off of this official Traefik blog post. The values file for our Traefik service is at helm/values/traefik.md:

providers:
  # Disable the Ingress provider (optional)
  # We do not want to use Ingress objects anymore!
  kubernetesIngress:
    enabled: false
  # Enable the GatewayAPI provider
  kubernetesGateway:
    enabled: true
ingressRoute:
  dashboard:
    enabled: true

Unlike the example from the official blog, we will only expose routes from the myapp namespace; thus we will use the default gateway.namespacePolicy value.

The following excerpt from init.sh installs the chart:

helm upgrade -i traefik \
  oci://ghcr.io/traefik/helm/traefik \
  -n myapp \
  --values values/traefik.yaml

Check our configuration:

$ kubectl describe svc traefik | grep ^Port: -A3
Port:                     web  80/TCP
TargetPort:               web/TCP
NodePort:                 web  30884/TCP
Endpoints:                10.244.0.21:8000
Port:                     websecure  443/TCP
TargetPort:               websecure/TCP
NodePort:                 websecure  30971/TCP
Endpoints:                10.244.0.21:8443
$ kubectl describe deploy traefik | grep -i entrypoint
      --entryPoints.metrics.address=:9100/tcp
      --entryPoints.traefik.address=:9000/tcp
      --entryPoints.web.address=:8000/tcp
      --entryPoints.websecure.address=:8443/tcp
      --metrics.prometheus.entrypoint=metrics
      --entryPoints.websecure.http.tls=true

Finally, we expose the web (for our webapp) and traefik (for the admin dashboard) endpoints. The corresponding lines from init.sh are:

. load_scripts.sh
traefik_expose
web_expose

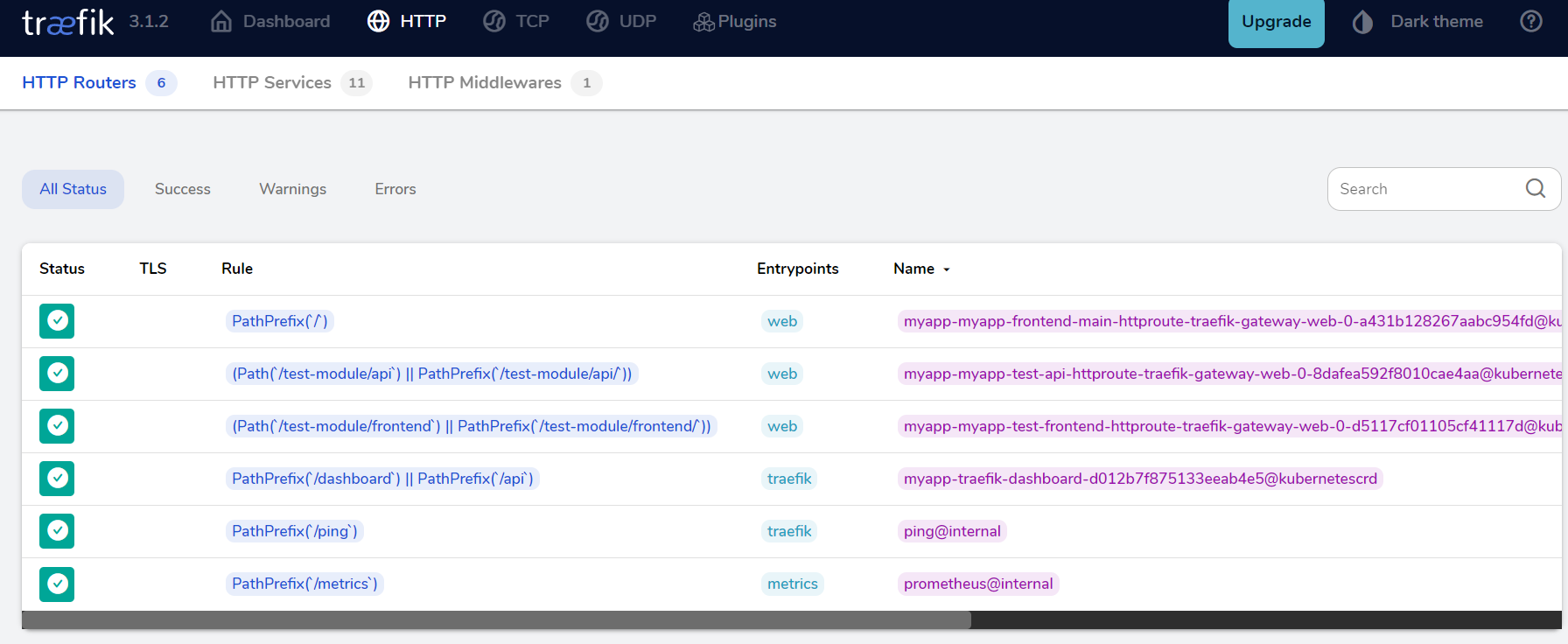

Screenshot of the Traefik dashboard exposed on localhost:9000.

HTTPRoute and Middlewares

The directory helm/charts/simple-service/ demonstrates how to create a HTTPRoute to Traefik. The three template files create a Deployment, Service, and HTTPRoute. The specification for the HTTPRoute contains the following:

helm template test charts/simple-service/ --values values/test/api.yaml | \
yq 'select(.kind == "HTTPRoute").spec.rules'

- matches:
    - path:
        type: PathPrefix
        value: /test-module/api
  backendRefs:
    - name: myapp-test-api
      namespace: myapp
      port: 3000
  filters:
    - type: ExtensionRef
      extensionRef:
        group: traefik.io
        kind: Middleware
        name: strip-prefix-test-api

helm template test charts/simple-service/ --values values/test/api.yaml | \
yq 'select(.kind == "Middleware")'

# Source: simple-service/templates/03-traefik.yaml
apiVersion: traefik.io/v1alpha1
kind: Middleware
metadata:
  name: strip-prefix-test-api
  namespace: myapp
spec:
  stripPrefix:
    prefixes:
      - /test-module/api

This instructs Traefik to forward requests containing the path prefix /test-module/api to the myapp-test-api service in the myapp namespace on port 3000, after applying the strip-prefix-test-api Middleware, which strips the path prefix from the forwarded request. Note that the ExtensionRef filter and Middleware are only included in our Helm chart if traefik.stripPrefix is set to true in our values file.
